Andco actuators are self-contained, electro-mechanical actuators designed for reliable, precise, controlled motion, including but not limited to lifting and lowering, pushing, and pulling, and opening and closing. Andco actuator technology offers durability and performance for a full range of functions. Easy installation and low maintenance costs make Andco Actuator products the perfect choice for your application.

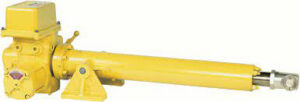

7000 Series Actuator
The Andco 7000 Series linear actuator is a completely self-contained, electromechanical device. Designed and fabricated for dependable, long-life operation, these actuators are used for positioning, automation of material handling, or flow control equipment.
How It Works
The 7000 Series actuators are driven by a high-starting torque, low-inertia motor connected to a drive screw through a set of gears. When the motor rotates the drive screw, the mating nut and attached extension rod move axially.
Upon completion of stroke, the gear-driven position limit switch interrupts power to the motor. If the movement of the extension rod is prevented in either direction at any point in actuator travel due to an external mechanical overload, a thrust switch will interrupt power to the motor.
Product Features
- Acme or Ball Screw Design
- Stroke lengths: 6” – 60”
- Velocity: 0.2 IPS – 12.0 IPS
- 900 lbs. to 42,000 lbs. of Force
- Single & Three Phase Motors
- Optional Motor Brake
- Integral Limit Switch Standard for On/Off or Mid-Positioning
- Position Indicating Options
- Optional 4-20 mA Integral Electric Actuator Smart Controller for Modulating Service
- Modbus® & DeviceNet™ Options
- Optional Integral Motor Control
- Optional Manual Over-Ride
- Clevis, Face Flange & Trunnion Mounting Options
- Optional Rod Cover

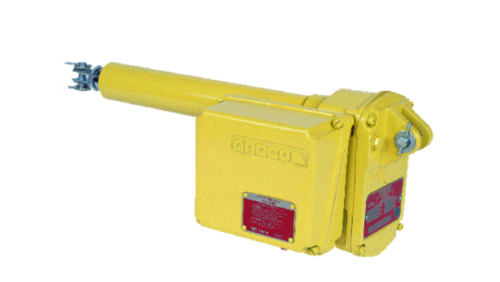

Andco Eagle Linear Actuators
The Andco Eagle Linear Actuator is a completely self-contained electro-mechanical device. Its compact design is equivalent in size to hydraulic or pneumatic cylinders. Designed and fabricated for easy installation and dependable long-life operation, these actuators are driven by a high-starting torque motor with thermal overload protection, non-rotating extension rod, non-backdriving acme screw, and all metal gearing.
Product Features
- Acme Screw Design
- Stroke Lengths: 6” – 36”
- Velocity: 0.2 IPS – 2.0 IPS
- 200 lbs. to 2,000 lbs. of Force
- Single & Three Phase Motors
- Integral Limit Switch Standard
- Position Indicating Options
- Optional 4-20 mA Integral Electric Actuator Smart Controller for Modulating Service
- Modbus® & DeviceNet™ Options
- Optional Mini-Reversing Contactor
- Optional Manual Over-Ride
- Clevis, Face Flange & Trunnion Mounting Options
- Optional Rod Cover
We are an authorized distributor of Andco Actuators and Dresser products – contact us today for aquote!
